GDH FAT

back to overview

GDH FATchili red

  • Maximum cushioning with absolute control
  • Proven ergonomic shape for less fatigue and arm pump
  • Developed with DH World Champion Vali Höll and top pro riders
Our World Cup grip for tackling punishing terrain: The GDH FAT is the thickest version of our successful downhill grip. With an ergonomic asymmetrical shape, it delivers maximum cushioning on the palms. The top side of the grip has significantly more rubber than the underside fingertip area. This extra layer of our GravityControl rubber compound absorbs big impacts and vibrations more effectively and lives up to the FAT moniker. The GDH FAT is the perfect grip for demanding courses, trails and drops and also for riders with larger hands who want a softer and larger overall grip diameter.
Color
MSRP $ 44.95 excl. VAT

Technical Specifications

Name
GDH FAT
Art.-No.
42440606
Dimensions
Length: 1390 mm
Width: 40 mm
Height: 42 mm
Use
Downhill/Gravity, Enduro, E-MTB
Weight
140 g*
Size
Fat
Color
Chili Red
Clamp
Extruded aluminum / CNC machined
Diameter
34 mm
MSRP
$ 44.95 excl. VAT

*Weights may vary in production. Weight per pair.

PERFORMANCE THROUGH EXPERIENCE At the top of the world for over ten years

Ergon has combined over ten years of experience with our GE1, GD1 Evo and GFR1 grip series with the expertise of 4X DH World Champion Vali Höll and pro riders Troy Brosnan, Fabien Barel and others to perfect every detail of the GDH FAT. The GDH FAT is an uncompromising downhill race grip with maximum cushioning / damping and a larger diameter for charging hard on local trails or to the top step of a World Cup DH podium.

The Ergon team discusses the surfaces with Vali.

INSIDE LOCKING One hex screw – locked down tight

Thanks to its high-strength aluminum inner clamp, the GDH FAT will not twist on aluminium or carbon handlebars – ensuring rider safety and confidence.

High-strength aluminum inner clamp.

HIGHEST QUALITY AND DURABILITY Certified by the SGS INSTITUT FRESENIUS

The bike grip is where you connect directly with your ride – it's in constant contact with your hands and skin. That's why every Ergon rubber compound is tested by SGS INSTITUT FRESENIUS, the world’s most trusted testing and certification organizations. Our compounds are carefully tested for harmful substances and meets or exceeds the toughest safety and quality standards. You can ride comfortably and confidently, knowing you're holding onto the best.

SGS-certified rubber grip.

DURABLE END PLUGS Added protection for your grips

The GDH FAT’s replaceable end plugs are extremely durable and protect the end of the grip during the inevitable crash.

Sturdy end plug.

More rubber thickness equals maximum cushioning

The GDH FAT increases the rubber thickness between the palm and handlebars to the max for extra cushioning and comfort, secure grip and bike control. The cushioning elements and rubber remain the same as the original GDH – only much thicker. Big impacts to the palms and arms are softened and vibrations virtually eliminated. Riders with larger hands often feel more comfortable and confident with the GDH FAT due to its larger overall circumference.

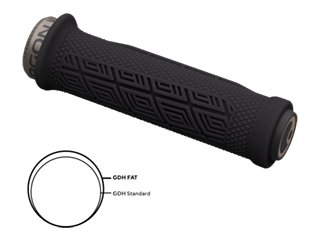

Handle comparison: The diameters of the Ergon GDH and GDH FAT handles.

Less hand fatigue. Less arm pump.

The ergonomic shape of the GDH FAT was designed in close collaboration with the fastest gravity athletes to minimize hand fatigue while enhancing control at speed on demanding terrain. Arm pump, pain and loss of strength in the hands and forearms due to excess pressure on the muscle tissue and fascia is reduced to the minimum with extra cushioning.

No arm pump with the GDH Team.

Multi-directional cushioning

The multi-level, multi-directional texture blocks on the grip’s top side provide unparalleled cushioning with maximum control. The interlocking texture structure prevents collapsing under pressure and delivers progressive cushioning that is comfortably soft yet does not bottom out under heavier hits. The asymmetrical design provides extra cushioning in the GDH FAT version with significantly more rubber on the top side of the grip compared to the underside.

Multidirectional texture blocks.

Finger zones for maximum grip

The aggressive finger zones on the underside of the grip maximize handling and grip in the most intense riding situations. The four individual finger zones are angled to match the hand and arm positions of the racer – ensuring a tenacious grip on demanding trails.

Perfectly pronounced grip zone.

Inner and outer stops keep you locked-in to win!

The integrated ergonomic outer stop of the GDH FAT delivers a locked-in hand feel and positions the outer edge of the hand perfectly in rapidly changing extreme conditions. The inner stop is an intuitive reference for the inner side of the hand and is designed to allow precise shifting and braking. You’ll grasp or your handlebars quickly and correctly every time.

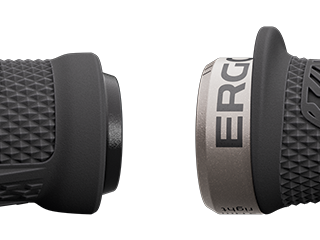

Inside and outside stop for perfect orientation.

Extra-soft rubber compound

The GravityControl rubber compound used in the GDH FAT grip is our softest rubber compound yet! GravityControl rubber delivers incredible cushion and damping for amazing comfort, feedback and control.

Extra soft rubber compound.
